Small-series electronics,
built for real systems.

Boards and controllers developed from practical integration work. Select the required quantity and send a purchase request. We confirm availability, delivery and the final invoice before the order becomes binding.

Initial catalogue

Available products

Business and private customers welcome. Prices and specifications will be added before launch.

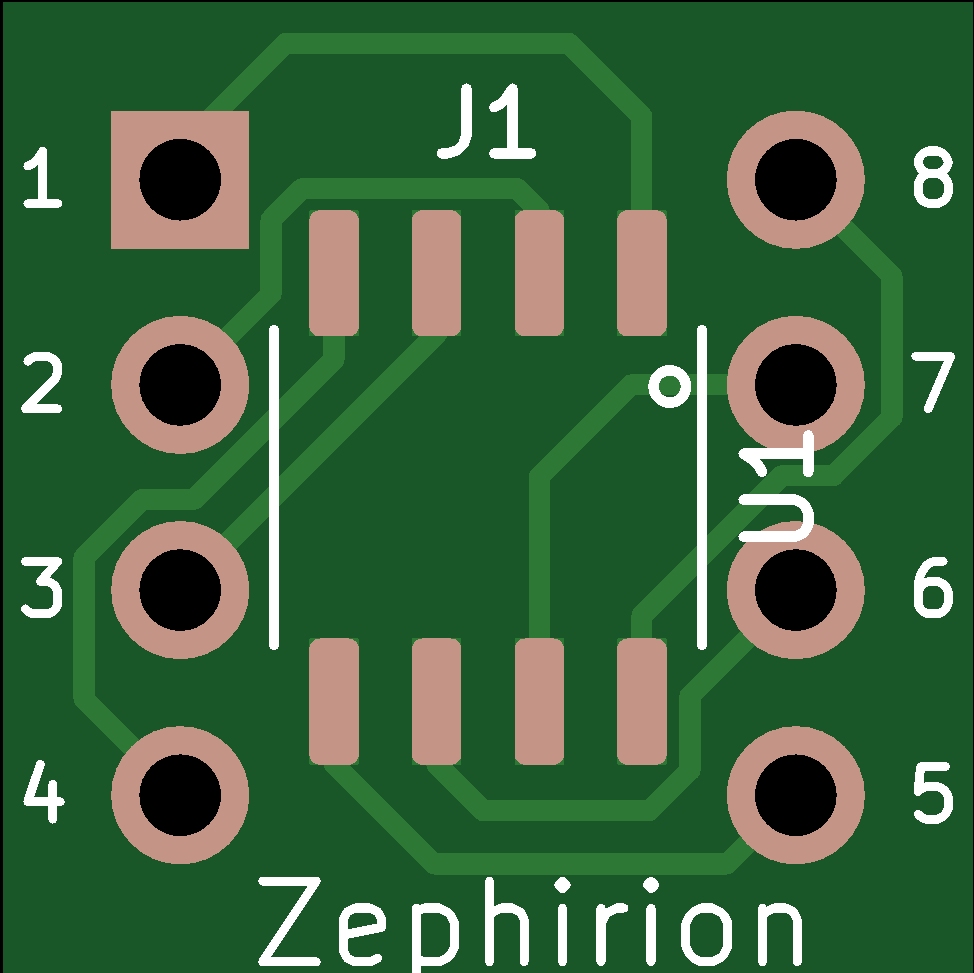

SMD Adapter circuit board for SOIC8 to DIL8 conversion

Article 20260901

SMD Adapter SOIC8 to DIL8

Unassembled adapter PCB for mounting an SOIC8 component in a standard DIL8 footprint. Supplied with pin headers.

  • SOIC8 to DIL8 conversion
  • Unassembled PCB
  • Pin headers included
Automatic volume pricing 1 pc: 20 SEK · 8 pcs: 150 SEK · 64 pcs: 950 SEK Packaging and shipping are added separately

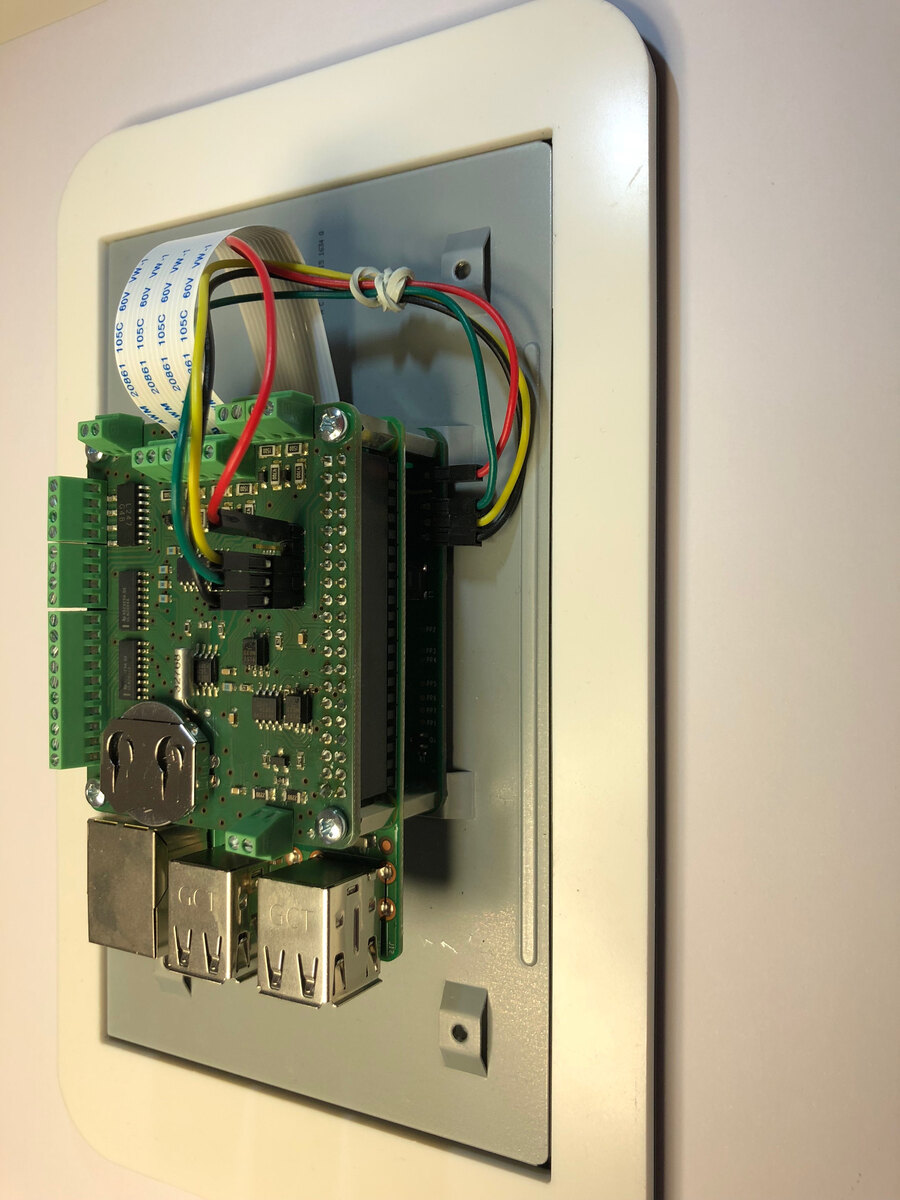

Zephirion Swiss Knife Pi HAT installed behind a display
Display integration
Laboratory process-control application using the Zephirion Swiss Knife Pi HAT
Laboratory application

Article 20251004

Zephirion Swiss Knife Pi HAT

Versatile industrial I/O and communication board for Raspberry Pi applications. Fully assembled and individually tested, with test report included.

  • 10 × 24 V digital outputs
  • 4 × optically isolated 24 V digital inputs
  • 5 × 4–20 mA analogue inputs
  • RS-485 and battery-backed real-time clock
  • Screw-terminal connections
Price on request External 24 V power supply, CR2025/CR2032 battery and Raspberry Pi are not included

Straightforward ordering

Request. Confirmation. Invoice.

01Send your requestSelect products, quantities and enter your delivery details.

02Receive confirmationWe confirm availability, lead time, shipping and the final price.

03Pay by invoiceThe order becomes binding only after explicit confirmation.
